Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Certificado
CHINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. Certificações
CHINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. Certificações
Revisões do cliente
25 de agosto de 2023, comprei chips UVA LED da Learnew. A Learnew entregou os chips UVA personalizados que pedimos rapidamente e com excelente trabalho. Foi um prazer trabalhar com a Learnew.Ele foi capaz de me dizer exatamente que produto iria funcionar com a minha impressora de curaEles são muito profissionais.

—— Ashraf Trading

Em 13 de outubro de 2023, recebi um chip LED 3535 COB personalizado. Sua atenção aos detalhes, respostas oportunas e entrega pontual superaram minhas expectativas. A amostra que recebi é o que preciso,muito brilhanteEu vou escolher aprender por um longo tempo no futuro.

—— Hector Bustillo

Março de 2024, Acabei de receber o produto e o experimentei, O design destes chips LED Hight é excelente.Estou extremamente satisfeito com o desempenho deles.!

—— Fabio Antista

Estou profundamente impressionado com a funcionalidade destes chips UV LED. Eles oferecem uma saída UV confiável, alta eficiência e uma longa vida útil. Um grande investimento para qualquer aplicação UV!

—— Ali Muhammad

Estou Chat Online Agora

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Imagem Grande :  Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Detalhes do produto:
Lugar de origem: China
Marca: LEARNEW
Certificação: CE
Número do modelo: 3538 SÉRIAS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2000-10000 PCS
Preço: negotiable
Detalhes da embalagem: Pacote à prova de pó e à prova eletrostática
Tempo de entrega: 1-7 dias úteis para amostras, 1-4 semanas para quantidade de encomenda
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte: 500,000PCS por mês

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

descrição
Nome: CHIP LED COB Potência: 250 W
Se: 2A*5 VF: 24-26V

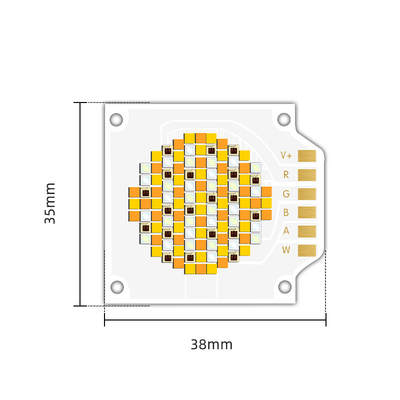

Tamanho inteiro: 35X38MM Serviço: Feito sob medida
Destacar:

3538 COB LED Chip

,

250W-350W COB LED Chip

,

Five Color COB LED Chip

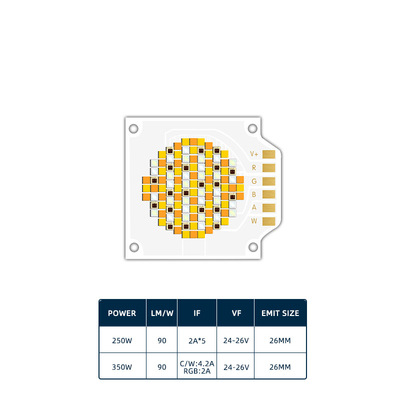

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
3538 SERIES 250W/350W Five colors COB 620nm/460nm/520nm/2700K /6500K 90 2A*5 24-26V 35X38MM 26MM 120° 95 Boss thermal and electrical separation copper substrate + aluminum nitride structure

COB (Chip on Board) LED is an LED packaging technology that directly connects LED chips to the PCB substrate instead of using traditional LED packaging. The advantages of five-color COB LEDs mainly include:

  • High brightness: COB LEDs integrate multiple LED chips on the same substrate, so they can provide higher brightness output.
  • Uniform light distribution: Since multiple LED chips are on the same substrate, COB LEDs can provide more uniform light distribution and reduce the light spot problem caused by multiple light sources.
  • Compact design: COB LEDs are more compact than traditional LED packages and are suitable for some applications with limited space.
  • Thermal management: COB LEDs integrate multiple LED chips on the PCB substrate, which helps to improve heat dissipation and extend the service life of LED lamps.
  • High color reproduction: Due to the combination of multiple LED chips, COB LEDs can provide a wider range of color temperature and color options with better color reproduction.

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 0Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 1

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 2

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 3



Five color COB Chip FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
