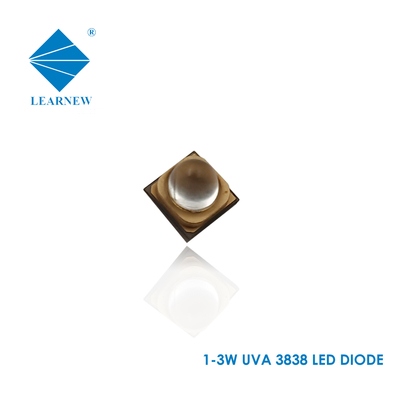

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

Imagem Grande :  3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

Detalhes do produto:
Lugar de origem: Guangdong, China
Marca: Learnew
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100
Contato

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

descrição
Material de chip: Ingan Tensão de entrada: 3.4-3.8V
Vida útil: 10000 horas Temperatura operacional: -20 - 60 ℃
Poder: 3w Intensidade radiante: 1050 MW/SR
Temperatura de armazenamento: -40 - 100 ℃ Ângulo de visualização: 60 °
Comprimento de onda: 405nm, 385nm/395nm/405nm Tamanho: 3.8*3.8MM
Substrato: ALN Coppering/Super Aluminium Atenuação óptica: 0,1%
Dissipação de energia: 0.1 Peso do produto: 0,1 kg
Temperatura da cor: 365-420nm
Destacar:

3W 405nm UV LED chip

,

UV curing LED chip 3.8x3.8mm

,

UVA LED chip for printing

405nm 3W UVA LED SMD 3838 UV-A Led Beads
High-performance UV LED chips for specialized applications
We offer OEM and ODM services to customize any type of LED chip to meet your specific requirements.
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 0 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 1
Product Specifications
Model: LN-SMD3535UV-P1
Parameter Value
Wavelength 395/405nm
Power 3W
Main size 3.5*3.5MM
View angle 120°
Lens Silica
Substrate Ceramic
Warranty 10,000Hrs or 2 years
Applications
  • LED plant growing market
  • UV curing and inkjet curing
  • Photosensitive applications and sterilization

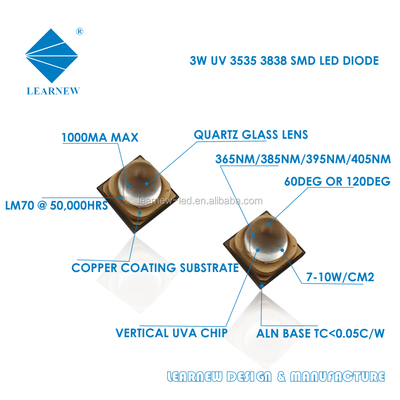

Model: LN-SMD3838UV-P1
Parameter Value
Wavelength 365nm 385nm 395nm 405nm
Power 3W
Main size 3.8*3.8MM
View angle 60°
Lens Quartz glass lens
Substrate ALN Coppering
Warranty 10,000Hrs or 2 years
Model: LN-SMD6868UV-P4
Parameter Value
Wavelength 365nm 385nm 395nm
Power 3W
Main size 6.8*6.8MM
View angle 60°
Lens Quartz glass lens
Substrate ALN Coppering
Warranty 10,000Hrs or 2 years
Application Examples
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 2 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 4 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 5 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 6 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 7 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 8 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 9 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 10 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 11 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 12 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 13 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 14 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 15
Company Information
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 16 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 17 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 18 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 19
Product Packaging
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 20 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 21
Frequently Asked Questions
Q1: Do you supply OEM,ODM service?
A1: Yes, absolutely it can be realized. We focus on OEM & ODM service with more than 7 years of experience.
Q2: All the pictures are real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please send us your requirements including product parameters, application, contact information and quantity. Our professional team will reply within one hour.
Q4: Is there any discount for bulk order?
A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on Alibaba to receive discount and coupon information.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. Shipping costs are based on your order's volume and weight, which you can check on Alibaba or ask our team.
Q6: How to place an order?
A6: You can place orders directly on Alibaba or contact us for order details. We will respond promptly.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: Standard lead time is 10-15 working days, depending on order quantity. Samples can be delivered in 3 days.
